D&D TruClose Heavy Duty - TCHDRND1-MK3 (standard)
TCHDRND1-MK3 Hinge Kit, For Round Gate Frames 1-3/8" and 1-5/8"
MFG Part Number #TCHDRND1-MK3
Manufacturer: DD Technologies

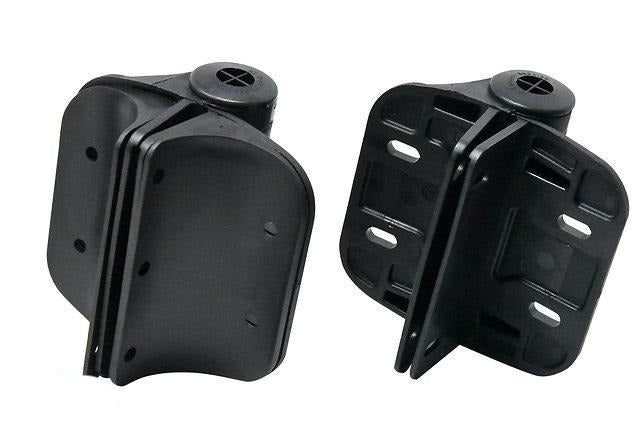

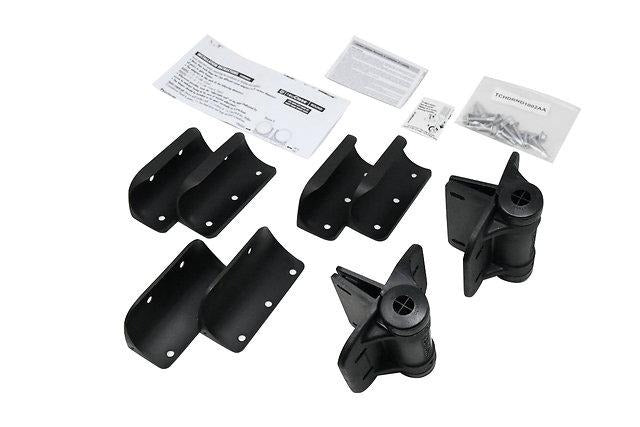

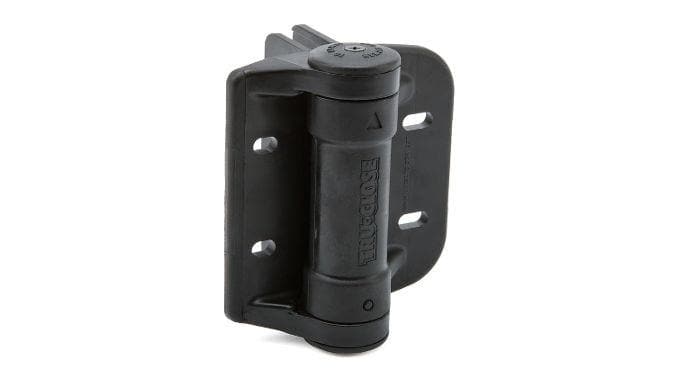

Round Post Self-Closing Chain Link Gate Hinge Kit. Each hinge kit includes (x2) hinges and mounting plates for multiple sizes of round posts. The Mounting plates for the post side of the hinge will fit posts sized: 1 7/8" to 3" Outside Diameter. The Mounting plates on the frame side of the hinge fit a 1-3/8" and 1-5/8" gate frame.
- Includes Mounting Plates: YES - both post and gate mounting plates
- Fits Posts Sizes: 1-7/8", 2-3/8", 2-7/8" (Outside Diameter)
- Fits Gate Frame Sizes: 1-3/8", 1-5/8" (Outside Diameter)
- Gate Gap Requirement: 3/4" minimum gap, 1-3/8" maximum gap
- Adjustable Self Closing Hinges: YES, for gates up to 132 LBS
- Made of Components: Engineered Polymer and Stainless Steel
- Common Application: Ideal for Gates of Frequent Use, such as Pools, Schools, etc.
- Round Post Plates Included: YES, plates for multiple pipe sizes included, simply select the size at time of checkout
