ZND ST612 - Anti-Climb Temporary Fence Panel
ZND ST612 - Anti-Climb Temporary Fence Panel
Couldn't load pickup availability
The ZND ST612 is a 6' high by 12' wide square-top temporary fence panel with anti-climb welded wire mesh. The frame is 1 3/8" pre-galvanized carbon steel with corner plates fitted at each corner to maintain frame squareness and protect the weld joints.
The mesh is welded to the frame at over 150 points of contact. Because each wire is an independent connection, a single severed wire does not compromise the remainder of the panel. Welded construction leaves no protruding wire ends, and panels stack flat for transport and storage.
Panels are repairable with a standard spot welder.
Specifications
| Panel size | 6' H x 12' W |
| Frame | 1 3/8" pre-galvanized carbon steel, square top |
| Weld points | 150+ mesh-to-frame contact points |
| Corner reinforcement | Corner plates |
| Reinforcement options | Vertical bar, vertical bar lightweight, or crossed bars |
| Panel weight |
111.8 lbs (ST612V), 77.2 lbs (ST612V.LW),
130.7 lbs (ST612VH)
|
| Repair | Repairable with a standard spot welder |
| Origin | Made in the USA |
Configurations
| SKU | Reinforcement | Description |
|---|---|---|

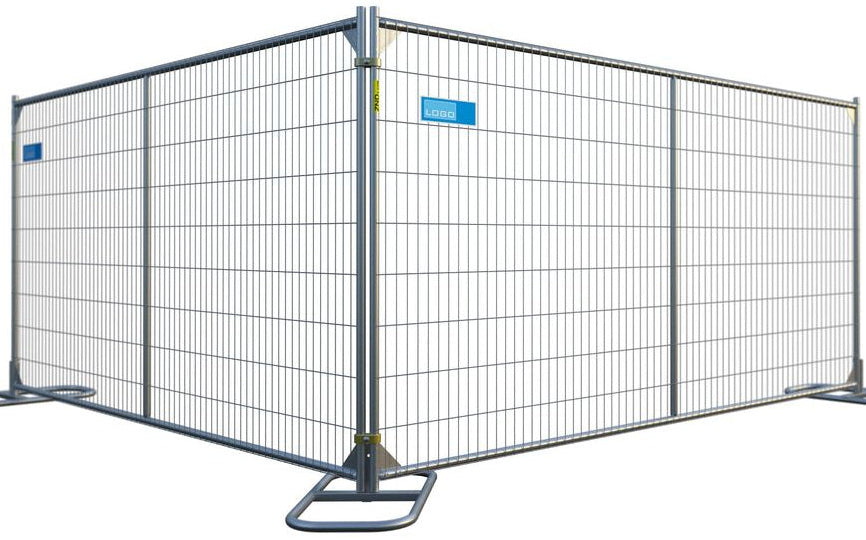

| ST612V | Vertical bar | Standard configuration |

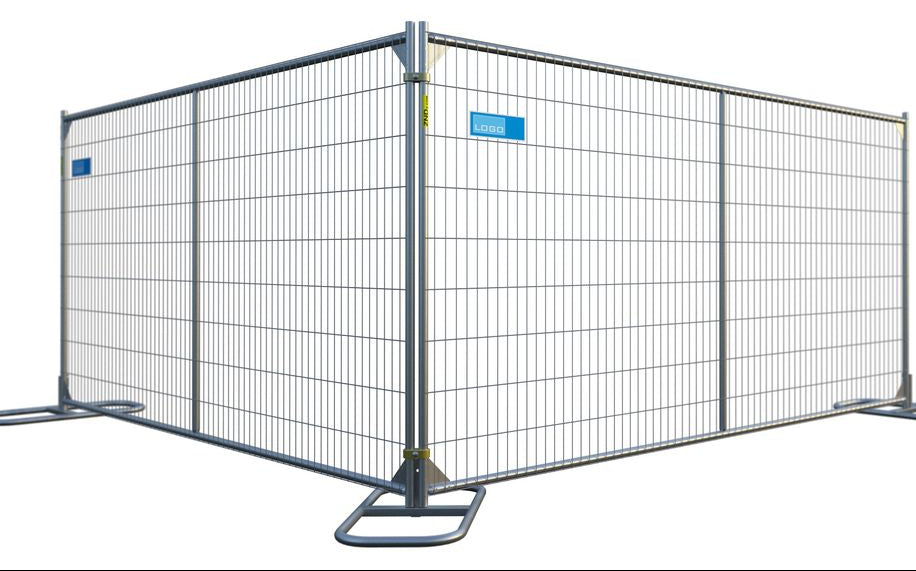

| ST612V.LW | Vertical bar, lightweight | Reduced panel weight for lower handling and freight weight |

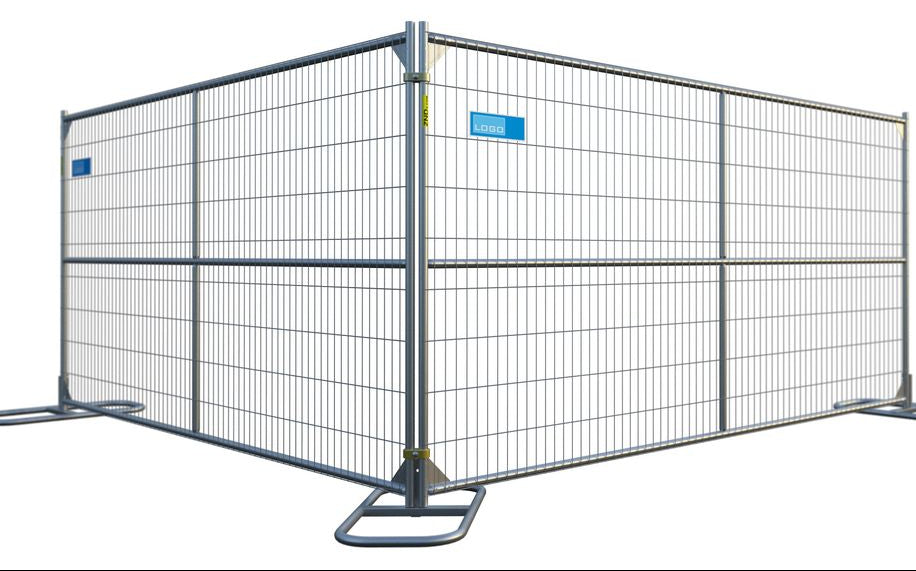

| ST612VH | Crossed bars | Vertical and horizontal bracing for increased frame rigidity |
Applications

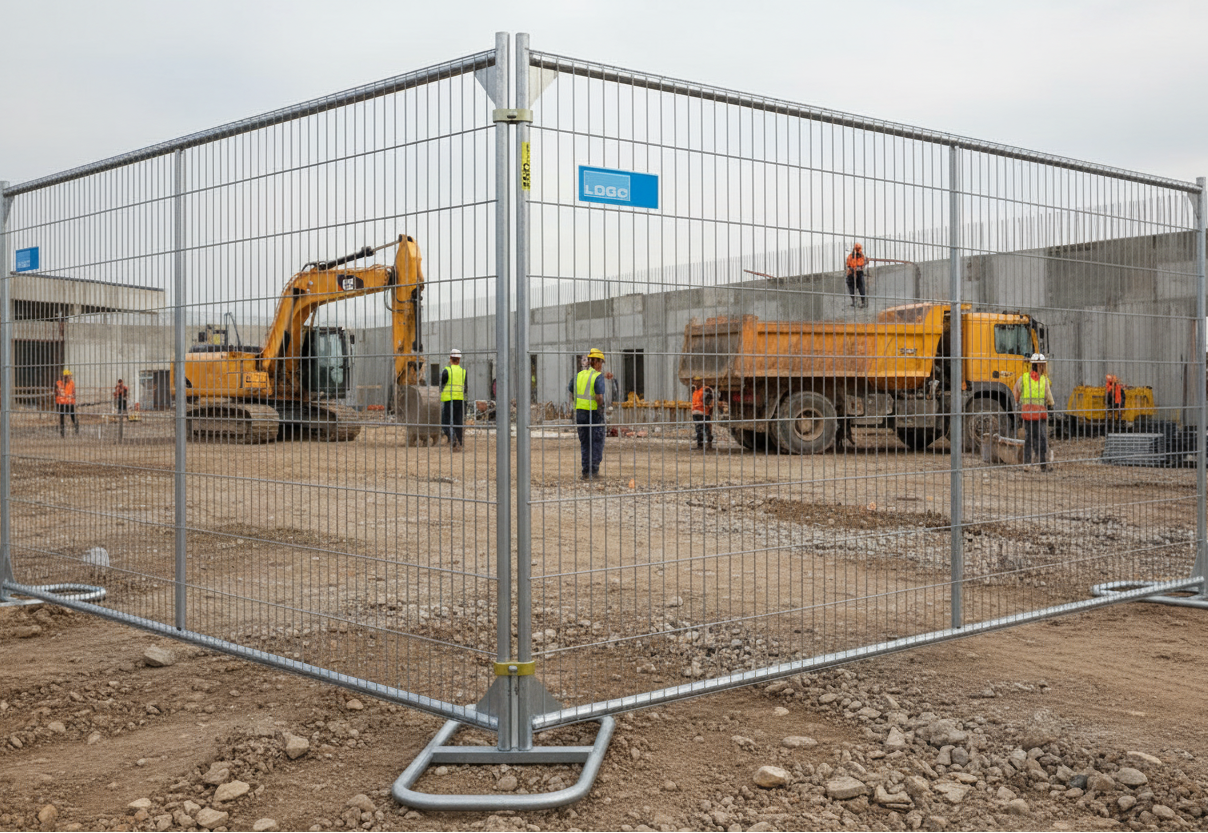

Construction site perimeters, site demarcation, event and crowd-control lines, secured storage areas, and temporary access control.
Compatible accessories
Tube Stand · OxBlock Panel Stand · Fence Coupler · Universal Fence Panel Stillage
Installation and quantities
ZND specifies one stand and two couplers per panel. Enclosed layouts require one stand per panel. Open layouts — straight, L-shaped, or U-shaped runs — require one additional stand at the starting end of the run.
Additional stabilization is specified for uneven terrain, high-wind locations, areas of heavy pedestrian traffic, and installations using privacy screen. Contact us for site-specific stabilization requirements.
Sold for purchase. Rental is not offered. Stocked in San Jose, CA. Panel pricing and freight quoted within one business day. Contractor, fleet, and distributor pricing available.
