ZND ST812 Anti-Climb Temporary Fence Panel - 8' x 12'
ZND ST812 Anti-Climb Temporary Fence Panel - 8' x 12'
Couldn't load pickup availability
The ZND ST812 is an 8' high by 12' wide square-top temporary fence panel with anti-climb welded wire mesh. Construction matches the ST612: a 1 3/8" pre-galvanized carbon steel frame with corner plates, and mesh welded to the frame at over 150 points of contact.
The 8' panel height is specified where a taller perimeter is required, including sites securing equipment or materials, long-duration installations, and public-facing perimeters.
Panels are repairable with a standard spot welder.
Specifications
| Panel size | 8' H x 12' W |
| Frame | 1 3/8" pre-galvanized carbon steel, square top |
| Mesh | Anti-climb welded wire |
| Weld points | 150+ mesh-to-frame contact points |
| Corner reinforcement | Corner plates |
| Reinforcement options | Vertical bar, vertical bar lightweight, or crossed bars |
| Panel weight | 61.9 lbs (ST812V), 87.5 (ST812V.LW), 154.3 (ST812VH) |
| Repair | Repairable with a standard spot welder |
| Origin | Made in the USA |
Configurations
| SKU | Reinforcement | Description |
|---|---|---|

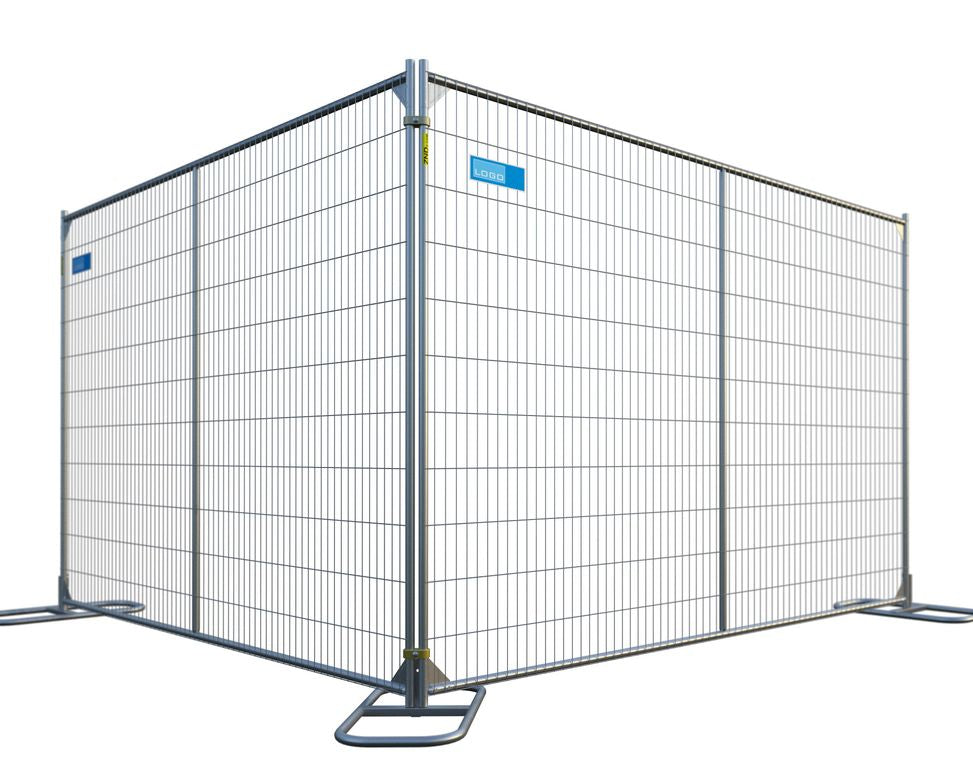

| ST812V | Vertical bar | Standard configuration |
| ST812V.LW | Vertical bar, lightweight | Reduced panel weight for lower handling and freight weight |

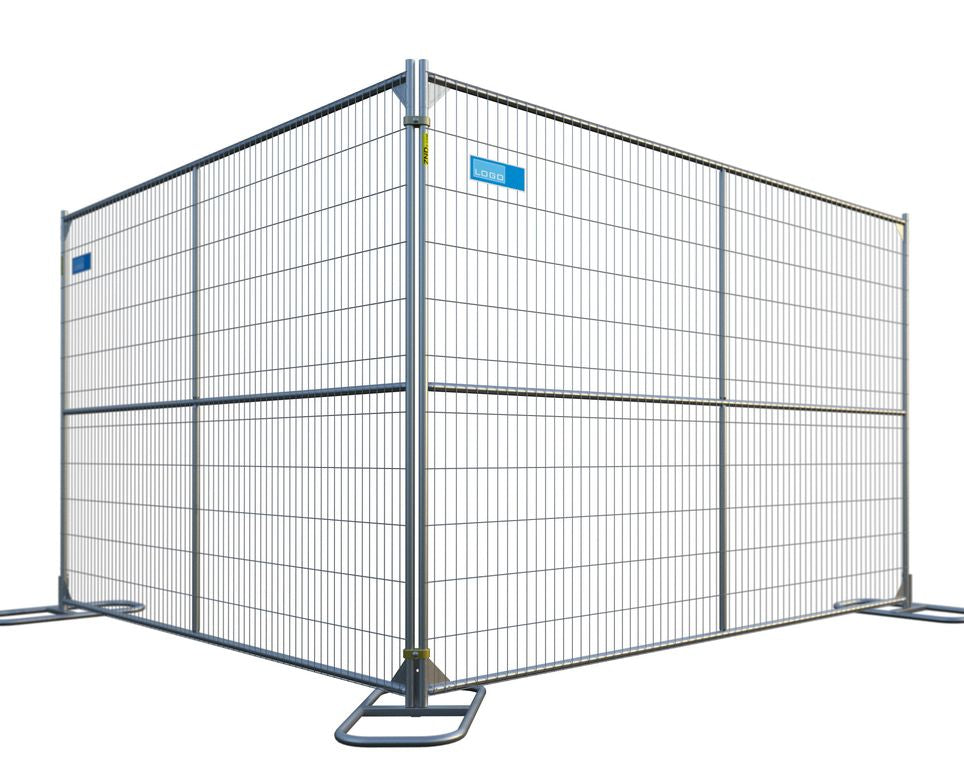

| ST812VH | Crossed bars | Vertical and horizontal bracing for increased frame rigidity |
Applications
Construction site perimeters, equipment and material storage areas, long-duration commercial and infrastructure projects, event and venue perimeters, and utility and industrial sites.
Compatible accessories
Tube Stand · OxBlock Panel Stand · Fence Coupler · Universal Fence Panel Stillage
Installation and quantities
ZND specifies one stand and two couplers per panel, with one additional stand at the starting end of any open run.
Wind loading varies with panel height, and stabilization requirements for 8' panels differ from those for 6' panels. Requirements increase further for uneven terrain, high-wind locations, heavy pedestrian traffic, and installations using privacy screen. Contact us for site-specific stabilization requirements.
Sold for purchase. Rental is not offered. Stocked in San Jose, CA. Panel pricing and freight quoted within one business day. Contractor, fleet, and distributor pricing available.
